Prostate cancer grading with CV/DL (SiMR project)

---

September 2, 2020

---

TLDR Summary:

This is a computer vision project in collaboration with SiMR (a major medical research center in Thailand). The first chapter of the project focused on developing an algorithm for grading prostate cancer biospy slides, in the format of mega/giga-pixel images (.tiff, .svs). The main contributions of the first chapter are 1. a DL algorithm performing at ~71% accuracy on ISUP grade classification, 2. An algorithm for speeding up ROI location by ~3x, and 3. Empirical evaluation of various DL improvement techniques.

The ongoing portion of the project focuses on automating the filtering of non-cancerous slides, by developing a model with a low false negative rate (FNR). The current FNR is below 1%, and has received promising feedback in regards to deployment for future practical use.

---

Article

For about 3 months I was working part-time on computer vision for prostate cancer grading, in collaboration with Siriraj Medical Research Center - that huge hospital with the really cool river/street food market location in Bangkok. This was my first CV/DL project in the medical research domain, and technically my first experience working with anyone in Thailand (since starting college). It started from my meeting a data scientist at Siriraj during a COVID-themed hackathon back in April, when I was unemployed and completely free (hence my involvement in a hackathon), and he figured the computer vision department at SiMR could use some extra hands.

One of the professors had started a research initiative on deep learning for prostate cancer grading, in hope of facilitating the usage of automated grading in hospitals throughout Thailand. Pathologists in Thailand aren't aplenty, and the fact that each patient biopsy takes several hours to grade means a demanding workload for each individual pathologist. It's not like our country has a outdated medical system with constant demand for UNICEF ads - as a matter of fact at the time of writing we've been exactly 100 days COVID free - but cancer grading is an effort-consuming task and the SiMR people were understandably curious if any parts of the process could be automated. My start period happened to coincide with a Kaggle competition on prostate cancer grading, and since the competition provided access to orders of magnitude more data than SiMR had available, I was assigned to work with the competition data, in hopes of delivering some practical solutions.

Anyways, enough of the bland storytelling, here's the project.

Data

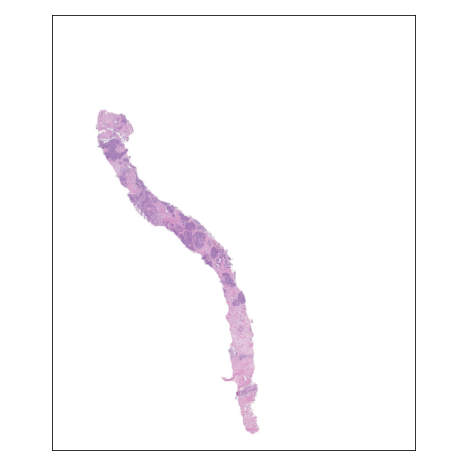

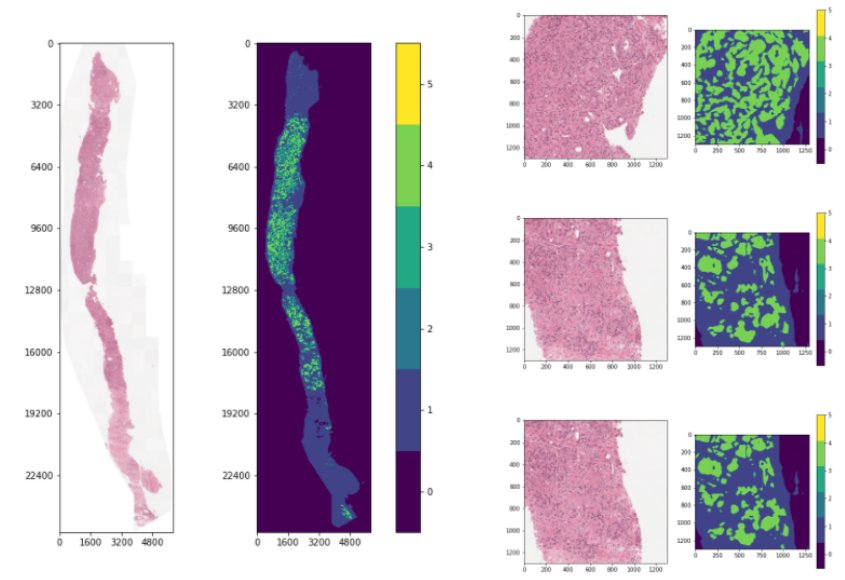

Each prostate biopsy is a microscopic scan of prostate gland tissue samples, typically provided in the format of a mega/giga-pixel image. Each image typically has dimensions of ~5000-40000 pixels per side, with a resolution of around 0.5 microns/pixel (~2.5-20 millimeters per side).

The target label for each slide comes in 2 formats:

1. ISUP Grade: A single integer value between 0-5 indicating the severity of cancer for the entire slide. These are the target values for the competition. A value of 0 indicates no cancerous regions, while values of 1-5 indicate increasingly severe observations.

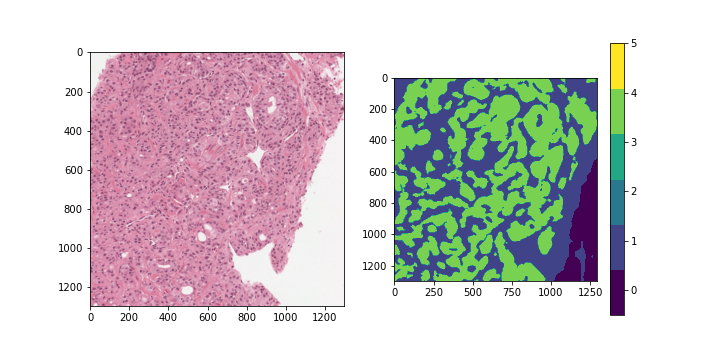

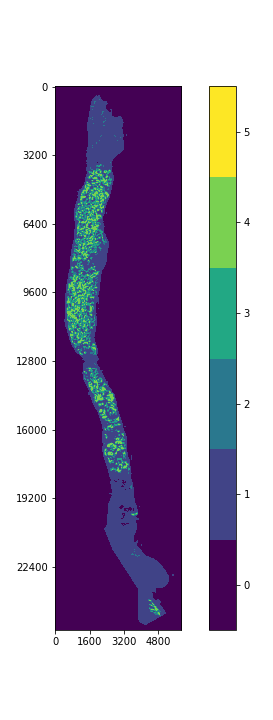

2. Gleason score: A segmentation label mask with values between 0-5 indicating the region type and/or cancer grade for each region. The values are as follows:
   • 0: background
   • 1: stroma (connective tissue, normal)
   • 2: healthy tissue (normal)
   • 3: Gleason 3 (cancer)
   • 4: Gleason 4 (cancer)
   • 5: Gleason 5 (cancer)

The Gleason score segmentation mask can be used to calculate the ISUP grade for the entire slide, based on the prevalence or lack of cancerous regions, as well as the most frequent (majority), and 2nd most frequent (minority) cancer grade.

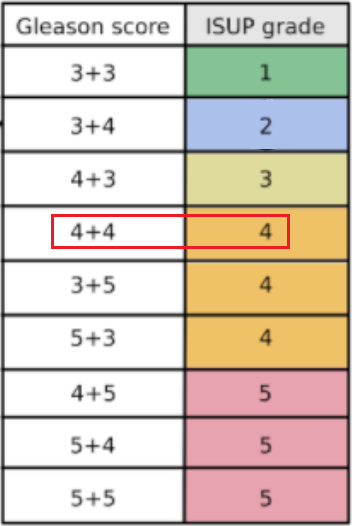

The calculation rule is shown in the table above. For example, if a slide consists of 5% Gleason 4 pixels, 3% Gleason 5, and 1% Gleason 3, the corresponding majority and minority classes are 4 and 5, signifying a slide label of 4+5, or an ISUP grade of 5. If the slide consisted of 5% Gleason 4 and no Gleason 5 or Gleason 3, the slide would be labeled as 4+4, or an ISUP grade of 4 (as the above slide).

On the other hand, if no cancer regions appeared at all, the slide would receive an ISUP grade of 0.

Problems with the dataset

With a perfect dataset, a straightforward approach would have been to train a segmentation model on the provided masks, and apply the majority-minority rule-based prediction to return the ISUP grade. This is in accordance with existing approaches (cite), which opt to train region-level classification models before predicting the ISUP grade by majority-minority counting or by running kNN.

However, only 50% of the slides provided by the competition (~5500 out of 11000) contain 6-label segmentation masks, and the masks are generated with trained CNNs instead of being hand-annotated. Inspecting the dataset easily reveals several problematic slides, with many slides being labeled with non-zero ISUP grades, while their corresponding segmentation masks contain no cancerous regions. This indicates that the overall Gleason score percentages for slides are untrustworthy, let alone the fine-grained, region-level segmentation labels.

To test the extent of the segmentation label errors, I ran a quick experiment to generate predictions from ground truth segmentation masks, using the half of the dataset with 6-label masks. With perfect segmentation masks, applying the majority-minority conversion rule should lead to 100% accuracy on ISUP grade prediction. By using the same rule on the provided noisy segmentation labels, we should get an idea of how incorrect the labels are, as well as retrieve an approximate upper bound for the segmentation model approach.

The code below computes the ISUP grade prediction accuracy by using the segmentation labels:

def get_isup_grade(tile):
    f = np.zeros([6]) # percentage vector for each grade
    for i in range(6):
        f[i] = np.mean(tile == i)

    gl = f[3:] # gleason 3,4,5
    if np.sum(gl) == 0: # 0+0
        return 0

    if np.argmax(gl) == 2:
        if gl[0] == 0 and gl[1] == 0: # 5+5
            return 5
        return 5 if gl[1] >= gl[0] else 4 # 5+4 / 5+3
    elif np.argmax(gl) == 1:
        if gl[0] == 0 and gl[2] == 0: # 4+4
            return 4
        return 5 if gl[2] >= gl[0] else 3 # 4+5 / 4+3
    elif np.argmax(gl) == 0:
        if gl[1] == 0 and gl[2] == 0: # 3+3
            return 1
        return 4 if gl[2] >= gl[1] else 2 # 3+5 / 3+3

# manual grading
n,nt = 0,0
for i,iid in enumerate(df[df['data_provider']=='radboud']['image_id']):
    isup = df[df['image_id']==iid]['isup_grade'].iloc[0]
    mask = openslide.OpenSlide('/kaggle/input/prostate-cancer-grade-assessment/train_label_masks/{}_mask.tiff'.format(iid))
    dx,dy = mask.dimensions
    mt = mask.read_region((0,0), 2, (int(dx/16), int(dy/16))) # downsample image for speed-up
    mt = np.array(mt)[:,:,0] # label is in 1st channel of image
    n += int(isup == get_isup_grade(mt))
    nt += 1
print('Accuracy : {}/{}, {:.3f}%'.format(n, nt, float(n)/nt*100))

Around 86% of the ISUP grade labels were predicted correctly using the ground truth segmentation masks. That isn't a terrible number, but it's not great if we're hoping to train a high-quality segmentation model on small biopsy regions. It also tells us that even if we trained a perfect segmentation model on the dataset, our ISUP grade accuracy is capped at around 86%.

We can do slightly better using an ML-based approach for ISUP grade prediction - insead of applying the majority-minority conversion rule, we'll just feed the 6D percentage vectors into a small MLP with the ISUP grade values as targets. The code below does that.

# MLP grading
from sklearn.neural_network import MLPClassifier
X,Y = np.zeros([len(df), 6]),np.zeros([len(df)])
for i,iid in enumerate(df[df['data_provider']=='radboud']['image_id']):
    isup = df[df['image_id']==iid]['isup_grade'].iloc[0]
    mask = openslide.OpenSlide('/kaggle/input/prostate-cancer-grade-assessment/train_label_masks/{}_mask.tiff'.format(iid))
    dx,dy = mask.dimensions
    mt = mask.read_region((0,0), 2, (int(dx/16), int(dy/16)))
    mt = np.array(mt)[:,:,0]
    f = np.zeros([6])
    for x in range(6):
        f[x] = np.mean(mt == x)
    X[i] = f
    Y[i] = isup

model = MLPClassifier(hidden_layer_sizes=(100, 100), max_iter=2500)
model.fit(X, Y)
print('Training accuracy: {:.3f}%'.format(model.score(X,Y)*100))

Take away train-test mismatch and we probably still improve over the rule-based approach, but the noisy segmentation masks still limit our accuracy. Furthermore, the percentage values for Gleason scores 3, 4, 5 are typically very small, on the order of 0.01 or 0.001 for most slides, since cancerous regions typically comprise none or only a small percentage of the biopsy. Imprecision in prediction values from a CNN will likely be a significant error source for ISUP grade prediction, further compounding the issues for the segmentation-based approach.

In conclusion, the errors in the model-generated segmentation labels are significant concerns in using a segmentation-based approach. I decided to pursue a slide-level model approach, where the ISUP grade is directly predicted, while later incorporating the segmentation approach for identifying regions of interest in the slide.

Slide-level approach

For the main competition I decided to use a slide-level model approach, meaning models would be trained to output a single ISUP grade value per slide, and disregard region-level labels or predictions. This aligns with the majority of approaches in Kaggle, and the general approach of this section will match that of the competition.

The first concern with a slide-level approach is the size of each slide - each slide is a mega/giga-pixel image. Resizing the entire into a reasonably-sized image (e.g. 512 x 512) is infeasible, since the important information is found in the magnified tissue patterns, with global structure providing no helpful information. In the weird words of an SiMR professor, "like finding a cat's nose in a paddy field".

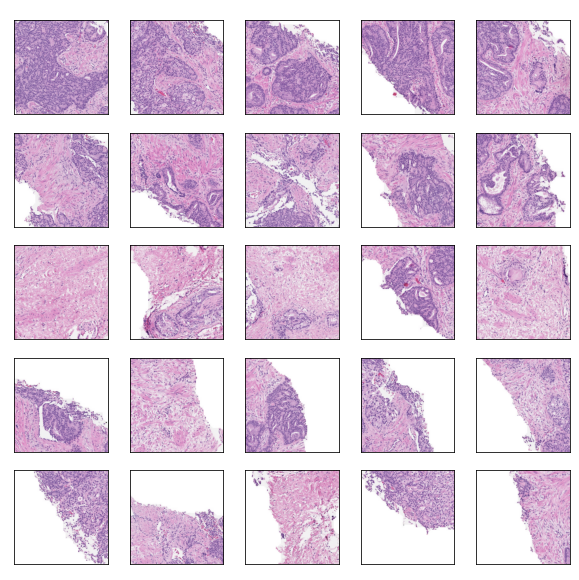

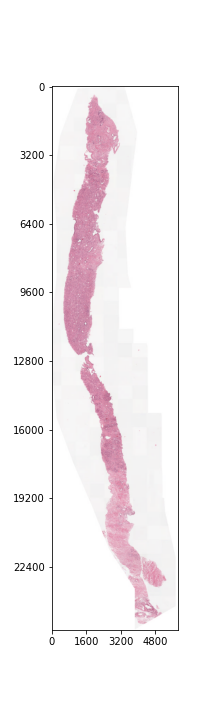

The approach used is to split the entire slide into tiles of smaller size (e.g. 1196 x 1196 pixels), selecting a small number of them that contain the most information (e.g. \( N = 25 \)), and combining those tiles as input into a CNN.

The information from each tile has to be merged in the CNN to produce a single value prediction, and the approach used was to perform feature extraction independently for each tile, by feeding them into the CNN as separate images, before concatenating the last-level feature maps spatially, and producing a feature vector for classification by performing a concat-pool operation (concatenation of max-pooling and average-pooling operations).

The code description for the forward() operation of such a model is shown in the block below (written in PyTorch):

class SlideModel(nn.Module):

    ...

    def forward(self, x):
        # input is of size (batch_size, n_tiles, C, H, W)
        n,n_tiles = x.size(0),x.size(1)
        x = x.view(n*n_tiles, x.size(2), x.size(3), x.size(4)) # into single batch

        x = self.net.extract_features(x) # returns the last-level feature map

        # x is of size (batch_size * n_tiles, C', H', W')
        nc,nd1,nd2 = x.size(1),x.size(2),x.size(3)
        x = x.view(n, n_tiles, nc, nd1, nd2)
        x = x.permute(0, 2, 1, 3, 4)
        x = torch.reshape(x, (n, nc, n_tiles * nd1, nd2)) # concatenate tile feature maps spatially

        # concat-pool
        x = torch.cat([
            torch.flatten(self.avgpool(x), 1),
            torch.flatten(self.maxpool(x), 1)
        ], dim=1)

        x = self.fc(x)
        return x

To prevent overfitting during training, the \( N \) input tiles are sampled from a larger, pre-computed pool of top scoring tiles from the slide (e.g. 20 sampled from 32). During validation/testing, the top \( N \) scoring tiles are chosen. The scoring heuristic will be discussed in the next section.

Tile selection heuristics

We should have a smart selection strategy for the \( N \) tiles selected as input for the slide-level model. The majority of tiles in a slide consist entirely of background pixels, and even some tiles with tissue cell pixels may not be very informative. To this end, a scoring heuristic should be designed for evaluating the value of each tile, which can be used to compare and rank different tiles in a slide.

A decent pixel-based heuristic to start off with is the mean pixel value of a tile, which devalues tiles that mostly consist of background pixels. In order to normalize this score to the \( [0,1] \) range, the mean pixel value is subtracted from 255 and divided by 255.

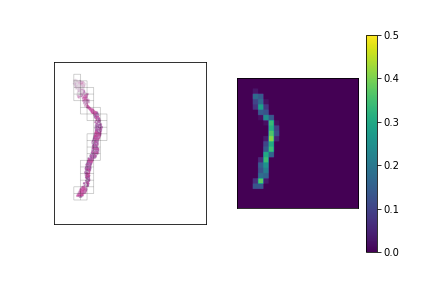

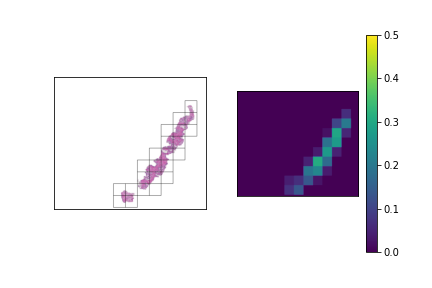

The plots below show examples of slides with candidate tiles highlighted, along with the corresponding heuristic scores.

One issue with a pixel-based heuristic is that it doesn't consider the semantic content of the tiles. For example, some tiles may contain tissue cells with Gleason scores 3, 4, or 5, while containing a significant proportion of background or lightly-colored tissue pixels. A pixel-based heuristic risks ignoring these tiles in favor of tiles with non-cancerous tissue, which may mislead the final ISUP grade prediction.

To overcome this, a semantic-based heuristic is used, which takes into account the segmentation mask labels. The tiles are scored by computing the total percentage of Gleason 3, 4, and 5 pixels within the tile, while the pixel-based score introduced earlier is used as a secondary ranking heuristic. Although the segmentation mask labels are evidently noisy, I believe it is not a huge issue since the tile sizes are rather large, and the computed score and ranking position of each tile does not have to be exact.

Since the segmentation mask labels are not available during inference, a pre-trained tile-level model is used to predict the heuristic score for each tile.

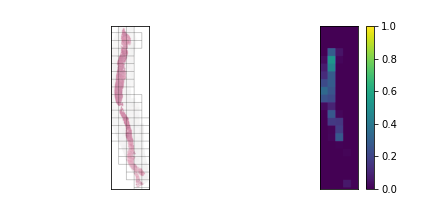

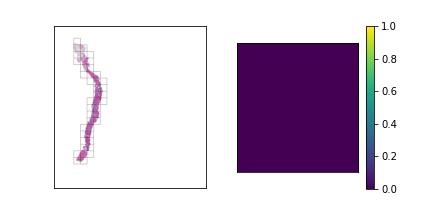

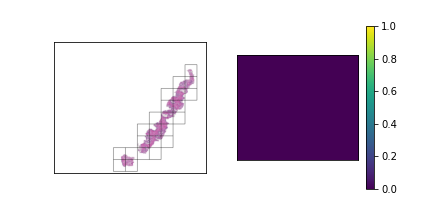

Some examples using this heuristic are visualized below.

We can compare these 2 heuristics by training some models for ISUP grade prediction, using each for tile selection. The backbone model used for feature extraction is ResNet-50, and the number of tiles \( N \) selected for model input is chosen as \( 20 \) (the RTX 2060 GPU available for this project only contained so much memory). The \( 20 \) tiles are sampled from a larger pool of \( 32 \) tiles.

Evaluating on a held-out validation set, we get the results below:

Fast tile selection

One issue that arises with tile selection is that there can be up to several hundreds, or even thousands of tiles in a mega/giga-pixel slide, depending on the desired tile size and slide dimensions. Iterating through and computing a score for every single one of these tiles with a simple pixel-count heuristic, let alone a CNN-based heuristic, is time-intensive, and rather inefficient given that much of a slide is comprised of background pixels.

To deal with this I wrote a method to increase the speed of tile selection, by evaluating regions of the slide in a hierarchical manner. At each level, this method splits a region of interest into \( K \) x \( K \) smaller regions. If a region meets the desired criteria (i.e. not entirely whitespace), the method proceeds recursively on that region until the level matches the desired tile size. Otherwise, that region is discarded.

The code for this method is shown in the block below:

'''
Returns tiles of interest from slide [slide], of size [end_tile_size] via hierarchical tiling
At each level, splits image into roughly [split] X [split] regions, and continues on regions that fulfill criteria
'''
def find_roi(slide, end_tile_size=299, split=3):

    # downsampled image is used for evaluating regions
    dx,dy = slide.dimensions
    mag_factor_x,mag_factor_y = 16,16
    img = np.array(slide.read_region((0,0), 2, (int(dx/16), int(dy/16))).convert('RGB'))

    ratio = min(dx,dy)/end_tile_size
    n_levels = int(math.ceil(np.log(ratio)/np.log(split))) # computes no. of levels until desired tile size is reached
    if n_levels == 1:
        coords = basic_tile_roi(slide, end_tile_size) # very few tiles, applies brute force tiling
        return coords

    # recursive helper function
    def helper(img, x0, x1, y0, y1, level):

        coords = []

        tile_size = end_tile_size*split**level
        nx = int(math.ceil((x1-x0)/tile_size))
        ny = int(math.ceil((y1-y0)/tile_size))

        for i in range(ny):
            for j in range(nx):
                mx0 = x0+j*tile_size
                mx1 = x0+(j+1)*tile_size
                my0 = y0+i*tile_size
                my1 = y0+(i+1)*tile_size

                tile = img[int(my0/mag_factor_y):int(my1/mag_factor_y), int(mx0/mag_factor_x):int(mx1/mag_factor_x)]
                coord = (mx0, mx1, my0, my1)
                if np.mean(tile) < 254.5: # filtering criteria for background pixels
                    if level == 0:
                        coords.append(coord) # desired tile size is reached, add to list of tiles
                    else:
                        coords.extend(helper(img, mx0, mx1, my0, my1, level-1)) # continue on lower level

        return coords
    return helper(img, 0, dx, 0, dy, n_levels-1)

We can test the runtime of this method, versus the runtime of brute-force tiling, with the code below. Both methods are tested on 100 slides, where all candidate tiles are scored with a basic pixel-based heuristic. The function basic_tile_roi is a simple iterative function that returns all possible candidate tile coordinates.

def basic_tile_roi(slide, tile_size):
    tiles = []
    dx,dy = slide.dimensions
    for i in range(int(math.ceil(dy/float(tile_size)))):
        for j in range(int(math.ceil(dx/float(tile_size)))):
            i1,i2 = i*tile_size,min(dy,(i+1)*tile_size)
            j1,j2 = j*tile_size,min(dx,(j+1)*tile_size)
            tiles.append([j1, j2, i1, i2])
    return tiles

# testing function
n = 100
def test_tiling_time(tile_fn, n=100):
    for iid in df['image_id'].iloc[:n]:
        slide = openslide.OpenSlide('/kaggle/input/prostate-cancer-grade-assessment/train_images/{}.tiff'.format(iid))
        tiles = tile_fn(slide)
        for x0,x1,y0,y1 in tiles:
            tile = slide.read_region((x0, y0), 1, (299, 299)).convert('RGB')
            score = np.mean(tile)

# Hierarchical tiling
start_time = time.time()
test_tiling_time(lambda x: find_roi(x, end_tile_size=1196, split=2), n)
print('Time for hierarchical tiling: {:.2f}s'.format(time.time() - start_time))

# Brute-force tiling
start_time = time.time()
test_tiling_time(lambda x: basic_tile_roi(x, 1196), n)
print('Time for brute force tiling: {:.2f}s'.format(time.time() - start_time))

This speeds up our tile selection process by about 3.5x, and this factor would grow if a CNN-based scoring heuristic (or some similarly time-intensive heuristic) is used, since the scoring heuristic is being evaluated on a much smaller set of tiles.

The hierarchical tile search process is visualized below in a few examples, for a fairly large tile size (1196 x 1196px):

Conclusion

For the competition, I ended up trying a variety of methods (hard-case sampling, attention-based pooling, merging tiles at the feature-vector level, architecture changes, and various image augmentation methods, etc.). None of them improved model accuracy beyond 71%, even on my local validation set, and I only managed to finish in the top 49% for the competition. Still, it was a good learning experience working in the medical domain.

The project with SiMR ended being extended into a further task - evaluating and reducing the false negative rate in model predictions, in order to automate the filtering out of biopsies with negative results. It turned out that ISUP grade prediction isn't extremely impressive or useful in aiding pathologists in their work (possibly because it's designed to replace them, not to help them), while a model that helps them save time on diagnosing low-risk patients turns out to be a bigger help.

That project is still in progress, and the current false negative rate is below 1%, for a false positive rate of ~20% (threshold tuning is used). False positives aren't very worrying in a system designed to filter out negatives - it just means the biopsy ends up being manually diagnosed by a human pathologist, while false negatives (undiagnosed cancer patients) are far more costly. Feedback from the lab at SiMR is that these results are promising, and could lead to an eventual deployment of an actual CV/DL-based filtering system, which is both nice and worrying to hear. If I ever do find any free time now that I've returned to school again, I may consider writing about that project.
